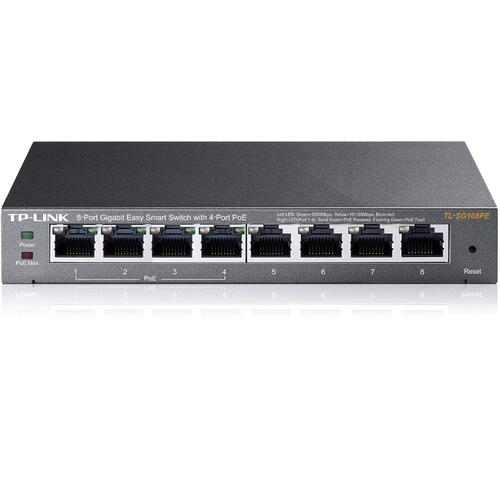

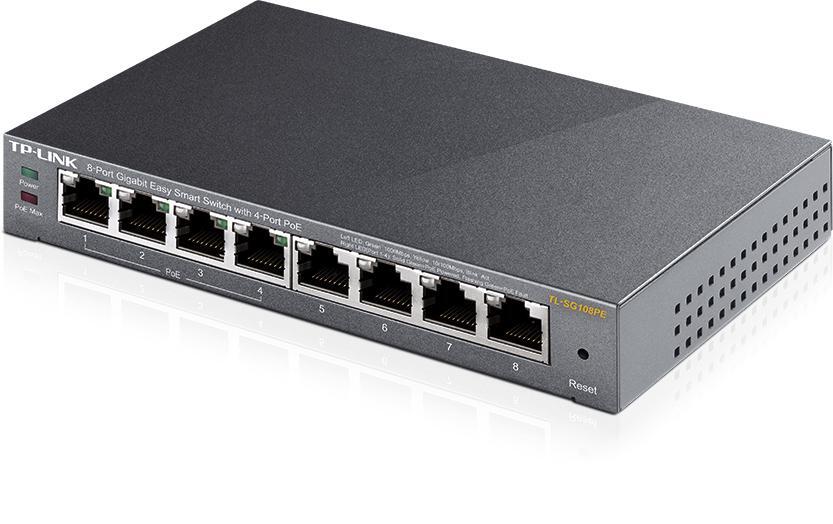

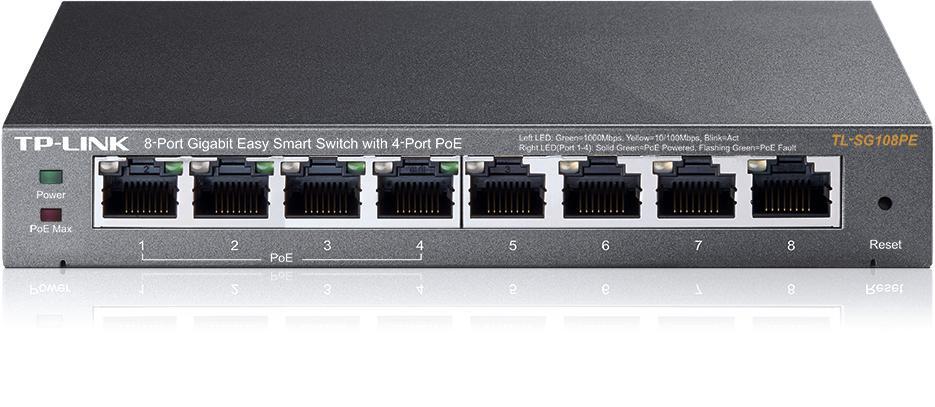

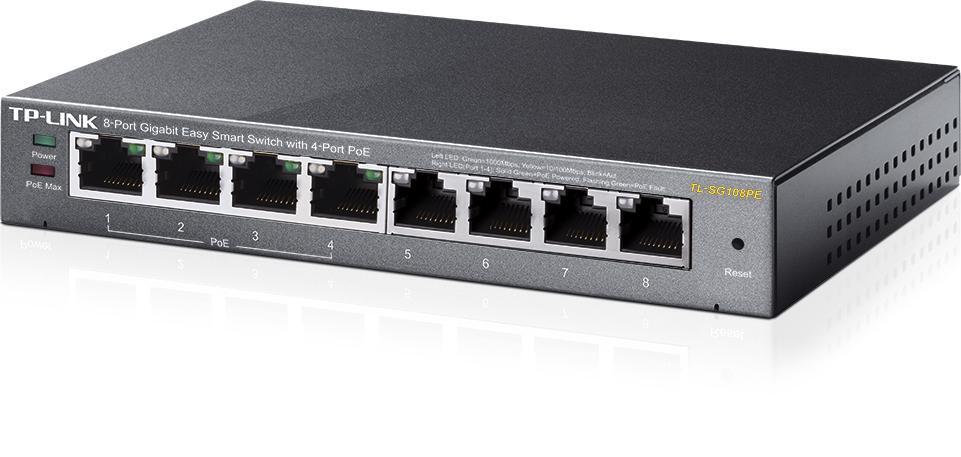

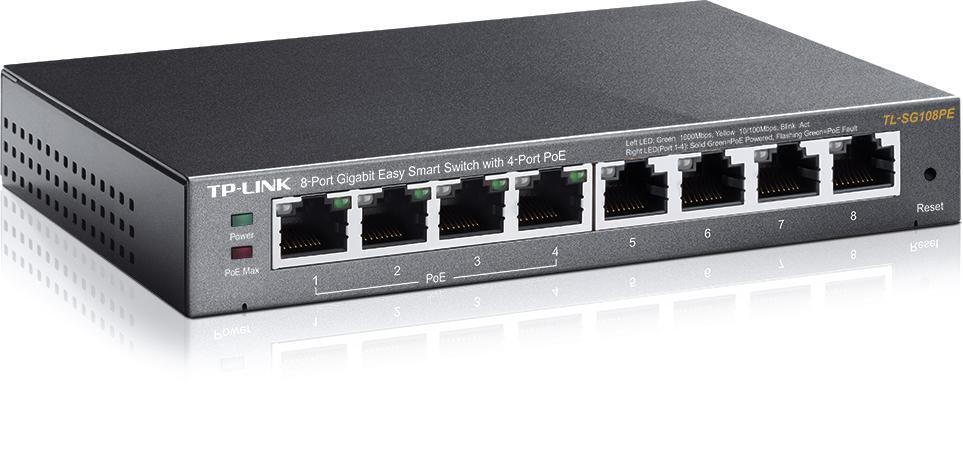

The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed specially for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.
(TL-SG108PE)
|
HARDWARE FEATURES
|
|
Standards and Protocols
|
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
|
|
Interface
|
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
|
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
|
|
Fan Quantity
|
Fanless
|
|
Power Supply
|
External Power Adapter(Output: 48VDC / 1.25A)
|
|
Power Consumption
|
Maximum (PoE on): 65.2W (220V/50Hz)
Maximum (PoE off): 5.2W (220V/50Hz)
|
|
PoE+ Ports(RJ45)
|
Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W
|
|
PERFORMANCE
|
|
Switching Capacity
|
16Gbps
|
|
Packet Forwarding Rate
|
11.9Mpps
|
|
MAC Address Table
|
4K
|
|
Packet Buffer Memory
|
1.5Mb
|
|
Jumbo Frame
|
15KB
|
|
SOFTWARE FEATURES
|
|
Quality of Service
|
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
|
|
L2 Features
|
IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
|
|
VLAN
|
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
|
|
Management
|
Web-based GUI
Easy Smart Configuration Utility
|
|
Transmission Method
|
Store-And-Forward
|
|
OTHERS
|
|
Certification
|
FCC, CE, RoHS
|
|
Package Contents
|
TL-SG108PE
Power Adapter
Installation Guide
Resource CD
Rubber Feet
|
|
System Requirements
|
Microsoft® Windows® for running Utility
|
|
Environment
|
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
|
| SKU |
TL-SG108PE |
| Model # |
TL-SG108PE |
| Barcode # |
6935364094744 |
| Brand |
TP-Link |
| Shipping Weight |
0.8000kg |
| Shipping Width |
0.400m |
| Shipping Height |
0.080m |
| Shipping Length |
0.250m |
| Unit Of Measure |
ea |
| Type |
store |
Lifetime Manufacturer Warranty
