Description

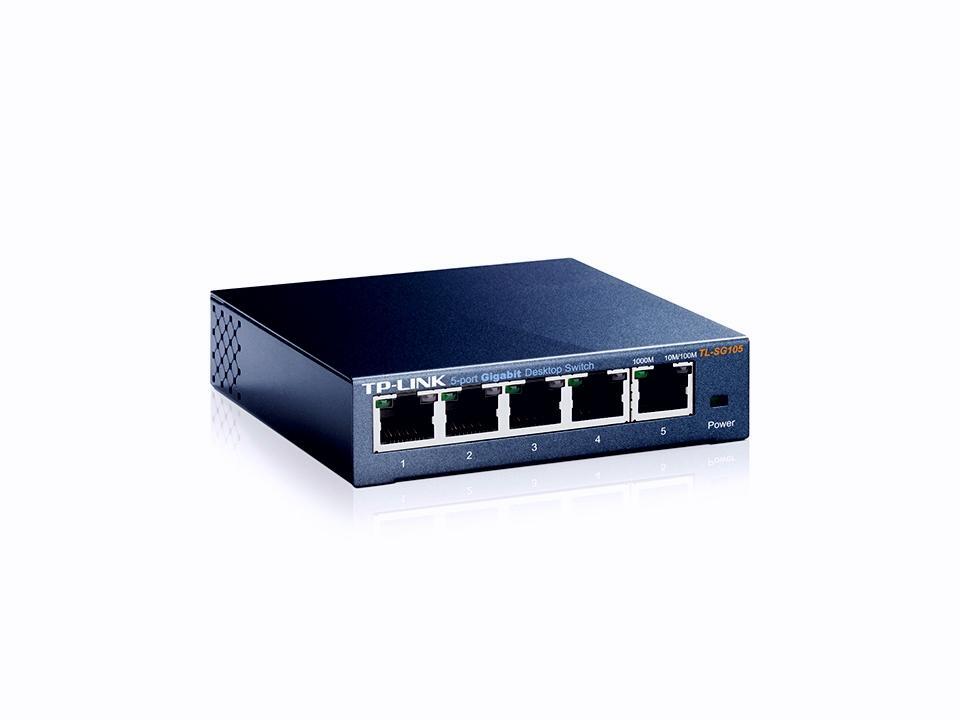

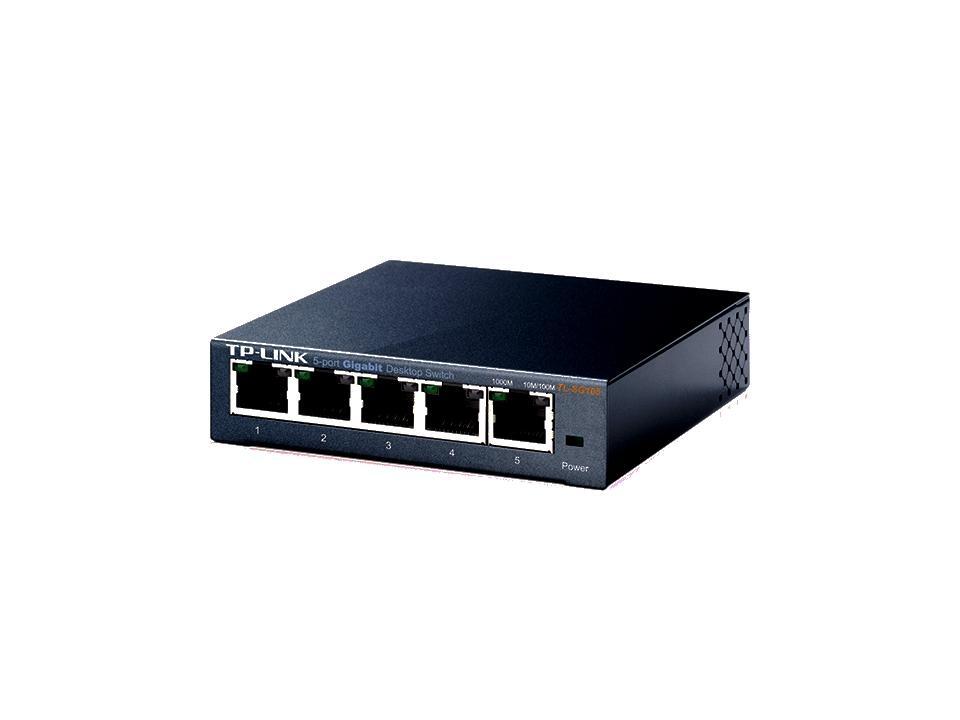

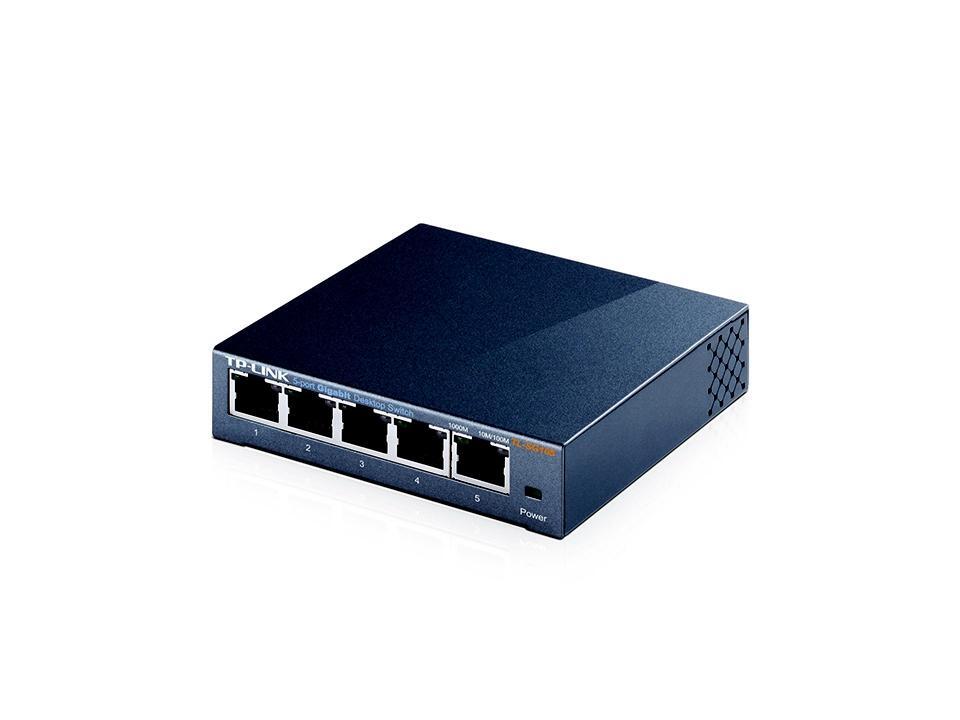

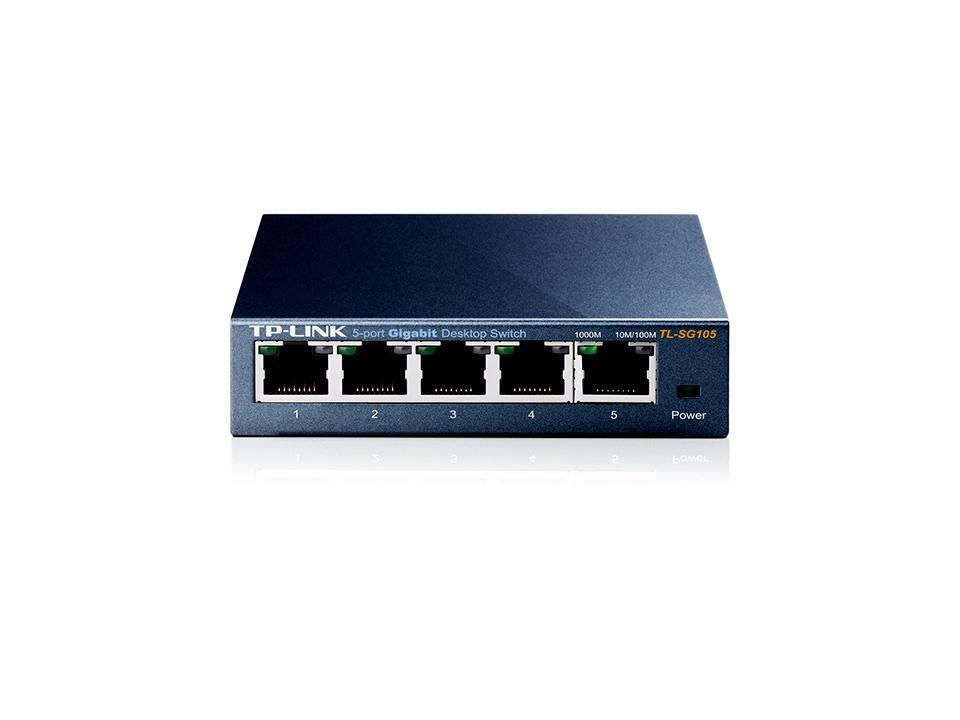

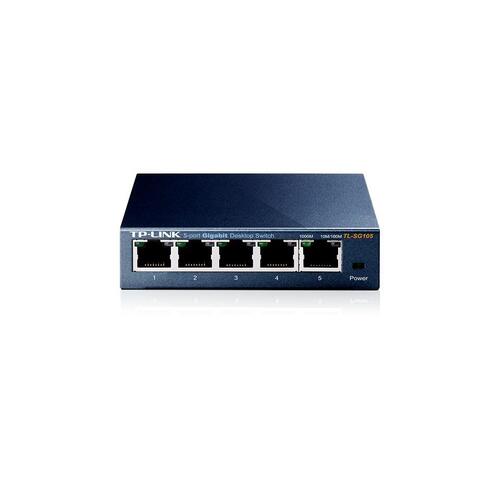

TP-Link  5-Port 10 100 1000Mbps Desktop Switch TL-SG105: The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
Dimensions (W X D X H) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Power Consumption Maximum: 3.2W (220V/50Hz)
External Power Supply External Power Adapter (Output: 9VDC / 0.6A)
LED Indicator System Power
Link, Speed and activity indicators per port built into each RJ-45 port
PERFORMANCE
Packet Forwarding Rate 7.4Mpps
MAC Address Table 2K
Packet Buffer Memory 1Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Advanced Features Green Technology, saving power up to 84%
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
SKU TL-SG105
Model # TL-SG105
Barcode # 6935364021146
Brand TP-Link
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.100m
Unit Of Measure ea
Type store

Features

What This Product Does

The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 84% of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 5 10/100/1000Mbps ports, TL-SG105 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
  • Power down Idle Ports
    When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 84% reduction in power use.
  • Power Budget According to Cable Length
    Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

  • Innovative energy-efficient technology saves power up to 65%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Steel design, desktop or wall-mounting design
  • Supports QoS (IEEE 802.1p) and IGMP snooping function
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 9K Jumbo frame improves performance of large data transfers
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
  • Fanless design ensures quiet operation
  • Plug and Play design simplifies installation

Warranty

1 Year Manufacture Warranty
